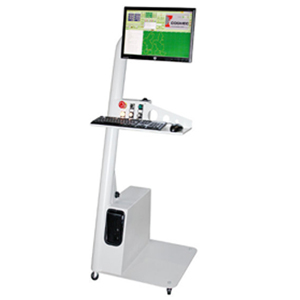

FOX CNC

Product Description

Specifications	FOX 1300	FOX 1600	FOX 2200
Working field	3200 x 1300 mm	3200 x 1600 mm	3200 x 2200 mm
	4200 x 1300 mm *	4200 x 1600 mm *	4200 x 2200 mm *
	6200 x 1300 mm *	6200 x 1600 mm *	6200 x 2200 mm *
	8200 x 1300 mm *	8200 x 1600 mm *	8200 x 2200 mm *
Max thickness for panel feeding	mm. 150	mm. 150	mm. 150
Vectorial speed	35 mt/min	35 mt/min	35 mt/min
	55 mt/min *	55 mt/min *	55 mt/min *
	85 mt/min *	85 mt/min *	85 mt/min *
Linear speed	25 mt/min	25 mt/min	25 mt/min
	40 mt/min *	40 mt/min *	40 mt/min *
	60 mt/min *	60 mt/min *	60 mt/min *
Vacuum pump capacity	90 mc/h	90 mc/h	90 mc/h
	180 mc/h *	180 mc/h *	180 mc/h *
	250 mc/h *	250 mc/h *	250 mc/h *
Tool changer	6 posizioni	6 posizioni	6 posizioni
Tool changer	10 posizioni *	10 posizioni *	10 posizioni *
Spindle rotation	1000 : 24000 rpm	1000 : 24000 rpm	1000 : 24000 rpm
Spindler power	kW 4,5	kW 4,5	kW 4,5
	kW 6 *	kW 6 *	kW 6 *
	kW 10 *	kW 10 *	kW 10 *
Tool chuck	ISO 30	ISO 30	ISO 30
Tool chuck	HSK F63 *	HSK F63 *	HSK F63 *
